SMBJ5344B-TP
Manufacturer:
Micro Commercial Components
Mfr.Part #:
SMBJ5344B-TP
Datasheet:
Description:

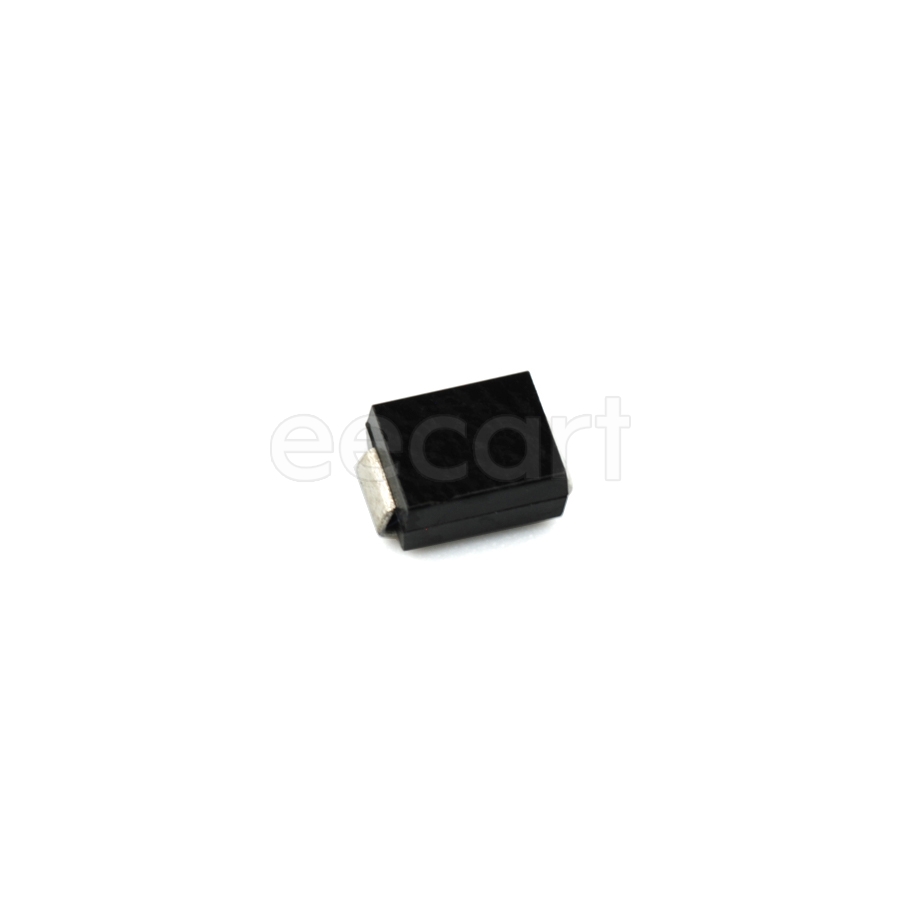

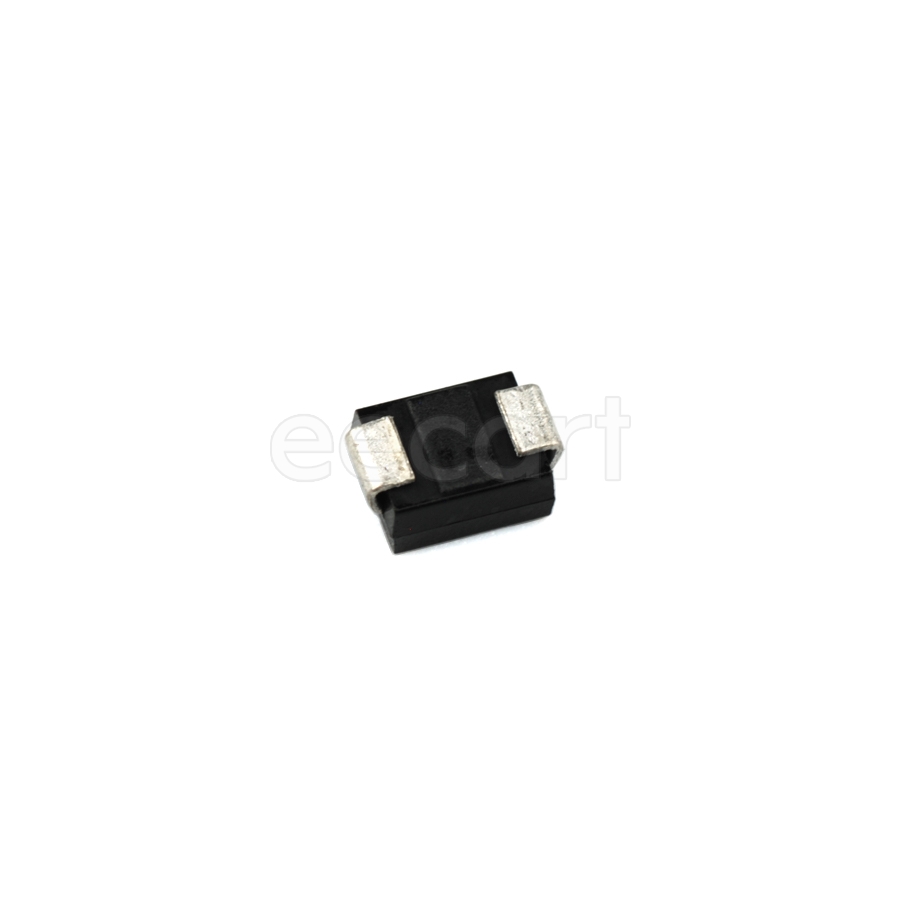

Zener Diodes SMB(DO-214AA) SMD/SMT Single Zener Voltage:8.2 V 5 % 5 W
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Impedance | 1.5 Ω |
| Working Voltage | 8.2 V |
| Forward Voltage | 1.2 V |
| Max Power Dissipation | 5 W |
| Power Dissipation | 5 W |
| Max Reverse Leakage Current | 10 µA |
| Zener Voltage | 8.2 V |
| Element Configuration | Single |
| Test Current | 150 mA |
| Reverse Current | 10 µA |
| Voltage Tolerance | 5 % |
| Zener Current | 580 mA |
| Schedule B | 8541100050 |
Stock: 28
Distributors
pcbx
pcbxUnit Price$0.32016
Ext.Price$0.32016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32016 | $0.32016 |
| 10 | $0.30772 | $3.07720 |
| 25 | $0.29576 | $7.39400 |
| 50 | $0.28426 | $14.21300 |
| 100 | $0.27412 | $27.41200 |
| 300 | $0.26434 | $79.30200 |
| 500 | $0.25492 | $127.46000 |
| 1000 | $0.25091 | $250.91000 |
| 3000 | $0.24696 | $740.88000 |
| 5000 | $0.24128 | $1206.40000 |
